Steel Nail Making Machine China Wholesale Good Price Bolt Screw Cold Header
Basic Info.
Model NO. | D8-300 |
Warranty | 12 Months |
Customized | Customized |
Advantage | Mold Forging |
Condition | New |
The Initial Punch Die | 40 X 180mm |
The Precise Punch Die | 40 X 180mm |
Main Die | 60 X 360mm |
Volume(L*W*H) | 4.4 X 1.6 X 1.9m |
Weight | 8500kg |
Cutter Size | 12 X 42 X 90mm |
Cut-off Die | 28 X 60mm |
Capacity | 25-35PCS/Min |
Stroke | 365mm |
Cut-off Length | 330mm |
Max Blank Length | 300mm |
Main Motor Power | 7.5kw |
Transport Package | Wooden Box |
Specification | 1-die 2-blow |
Trademark | Tengfeng |
Origin | Hubei, China |
HS Code | 8462109000 |
Production Capacity | 10sets |
Product Description
High quality Long Stroke PKO Cold Heading Machine Bolt Forming Machine ManufacturerProduct Description
Model: D8-300Item: 1Die 2 Blow cold heading machineMechanical Introduction:* The 1 die 2 blow cold heading machine is specializing in the production of various types of screw products.* The outer shell can be customized in different colors.
Advantages: --high speed --high precision --wide versatility --high efficiency
Specification
Item | 1-Die 2-Blow Cold Heading Machine |
Model | D8-300 |
Max Blank Diameter | 5.0-11.0mm |
Max Blank Length | 300mm |
Max Cut-off Length | 330mm |
Stroke | 365mm |
Capacity | 25-35pcs/min |
Main Die | Φ60 x 360mm |
1st Punch Die | Φ40 x 180mm |
2nd Punch Die | Φ40 x 180mm |
Cut-off Die | Φ28 x 60mm |
Cutter Size | 12 x 42 x 90mm |
Main Motor Power | 10HP / 7.5KW |
Volume (L*W*H) | 4.3 x 1.6 x 1.9m |
Weight | 8500kg |
Warranty | 1 year |
Brand | Tengfeng |
Origin | Hubei, China |
Detailed Photos

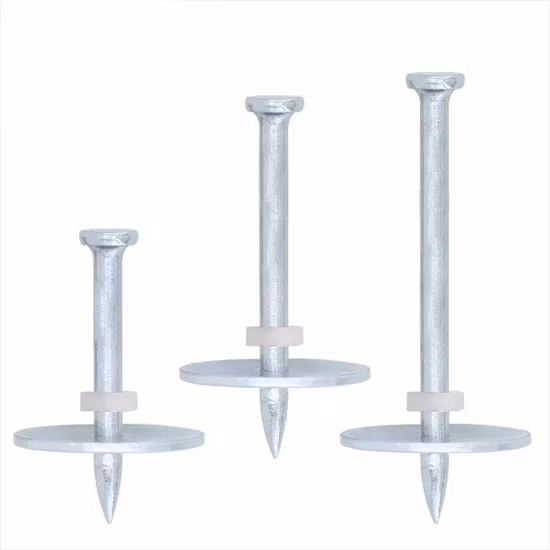

Finished product
Hubei Tengfeng Machinery Technology Co., Ltd. is a well-known enterprise integrating scientific research, manufacturing, sales of fastener machinery and equipment. Our company have:1.Company area & staff member: Over 70000 square meters of production base and more than 300 professional & technical talents. 2.Rich experience: More than 20 years of professional production3.Broad market: Our products have been sold to more than 30 countries including Russia, India Turkey, Egypt, Azerbaijan, Turkmenistan, Kazakhstan, Uzbekistan, Pakistan, South Africa, Ethiopia, Argentina, Peru, Colombia, Iran, etc.. won the favor and praise of customers at home and abroad.4.Products of a great variety: Including cold heading machine, screwing machine, open and close die cold heading machine, nut forming machine, parts forming machine and other mechanical equipment experience5.Certificate: CE/ SGS /ISO9001/patent
Our product line includes: 1D2B cold heading machine, 2/3/4/6 satiation cold former, nut former, semi-tubular rivet machine, blind rivet machine, open and close mold header, threading machine series(vibrator feeder type, hopper type, vertical, automatic cutting) , self-drilling screw machine, washer assembly machinery series, and other standard and non-standard fastener machinery.
3,What is your MOQ?
1 set of any machines.
It depends on your order quantity, normally it's 15-30 working days.
There are always enough adjustment of machinery first, then qualified samples of finished products will be shown to customer to confirm before delivery.
The guarantee time is 1 year if it's the quality problem of the machinery. If the problem is caused by improper operation, we will provide free online assistance service, also we can send you some parts for replacement, which the cost will be at your expense.
